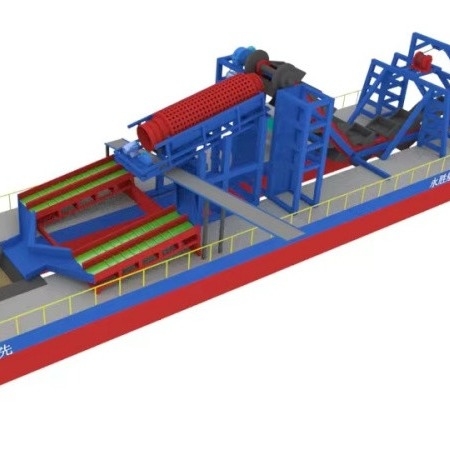

100m3/h capacity chain bucket dredger for gold mining
product description
The chain bucket dredger is an underwater dredging machine with a long history and mature
technology. It excavates soil or sand and gravel through a continuously operating chain bucket
system and is widely used in water conservancy projects, port construction and other fields.
product parameters
|
Model
|
YSBCD80
|
YSBCD100
|
|
Capacity(m3/h)
|
80-100
|
120-150
|
|
Dredging depth(m)
|
1-10
|
1-15
|
|
Main engine power(kw)
|
45
|
75
|
|
Main reducer
|
ZQ750
|
ZQ1250
|
|
Bucket
|
800mm
|
1000mm
|
|
Chain
|
600*90*22mm
|
650*90*25mm
|
|
Big Arm Winch
|
15kw-6
|
22kw-6
|
Core components
Bucket chain system: A flexible bucket chain is composed of multiple articulated mud buckets
(bucket capacity 0.04 to 1 cubic meter, large ones exceed 1 cubic meter), which rely on the
upper guide wheel (drive wheel) and lower guide wheel (guide wheel) on the bucket bridge
for cyclic movement
Bucket bridge and bucket tower: The bucket bridge is adjusted by the winch cable lifting
and lowering (maximum digging depth 35 to 40 meters); a mud well is set on the top of the
bucket tower to collect mud and sand
Anchoring system: Relying on the coordinated retraction and release of the head anchor,
tail anchor and transverse side anchor, the forward movement or swing of the hull is controlled
to achieve precise positioning
Workflow
The chain bucket cuts into the riverbed to dredge → lifts to the water surface → unloads into
the mud well through the upper guide wheel → discharges into the mud barge through the
mud chute or conveyor belt, and is finally transported to the mud unloading area by tugboat.
Operation continuity is its significant feature that distinguishes it from a single-bucket dredger
Why Choose a Chain Bucket Dredger?
Chain bucket dredgers are the preferred choice for projects requiring reliability, durability,
and efficiency. Whether you're mining valuable resources, maintaining waterways, or
restoring ecosystems, these dredgers deliver consistent performance in even the most
challenging conditions.
Contact us today to learn more about how our chain bucket dredgers can meet your
project needs!
